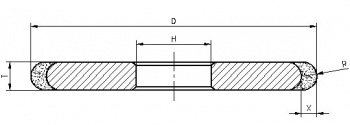

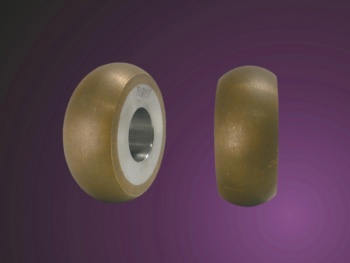

Typ - 1FF1   Disc-type diamond radial grinding wheel












Standard dimensions in mm

D

T

X

R

60

10 - 30

5

10 - 60

80

10 - 30

5

10 - 60

100

10 - 30

5, 10

10 - 60

150

10 - 40

5, 10

10 - 60

200

10 - 40

10

10 - 60

250

10 - 40

10

10 - 60

300

10 - 40

10

10 - 60

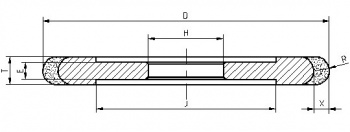

H, J, E - accords the requirements

NOTE! We can make the wheels of other dimensions

Size of diamond grit: D39 - D251 (FEPA)

Bond: sintered metal M

Order example:  type    D x T x X x H x R    diamond grit

1FF1   250 x 20 x 10 x 42 x R20   D46
