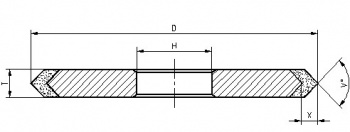

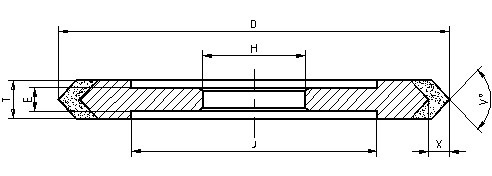

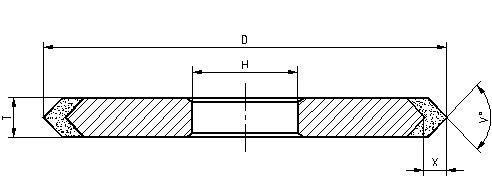

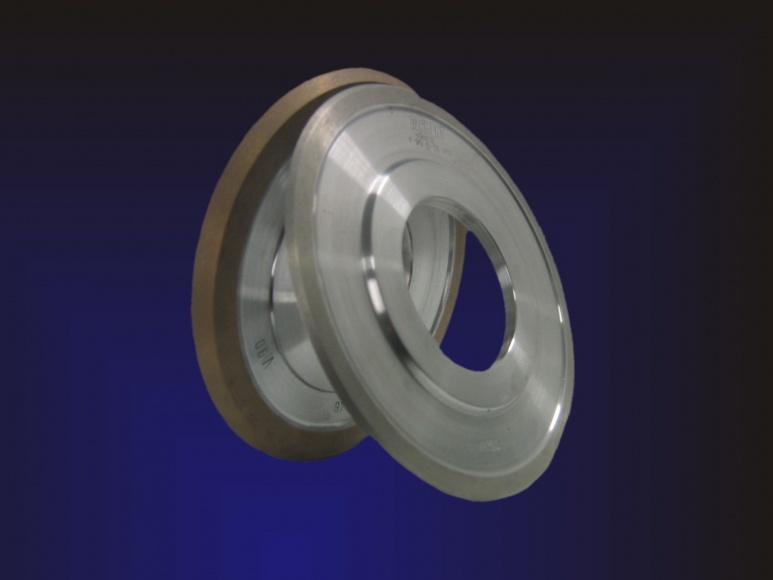

Type: 1EE1, 9EE1    Disc-type diamond angular symmetric grinding wheel















Standard dimensions in mm

D

T

X

Vo

30

8 - 20

5

80o - 140o

45

8 - 20

5

80o - 140o

60

8 - 20

5

80o - 140o

80

8 - 20

5, 10

80o - 140o

100

8 - 20

5, 10

80o - 140o

150

8 - 20

5, 10

80o - 140o

175

8 - 20

5, 10

80o - 140o

200

8 - 20

10

80o - 140o

250

8 - 20

10

80o - 14

H, J, E - accords the requirement

NOTE! We can make the wheels of other dimensions

Diamond grit size: D39 - D251 (FEPA)

Bond: sintered metal M

Order Example: type    D x T x X x H x Vo    diamond grit

1EE1    200 x 10 x 10 x 42 x V110o   D46
