Glass and Ceramics » Grinding wheels for decorative glass (crystal, decorative flat-glass, etc.) » Disc-type diamond angular symmetric grinding wheel 14EE1 »

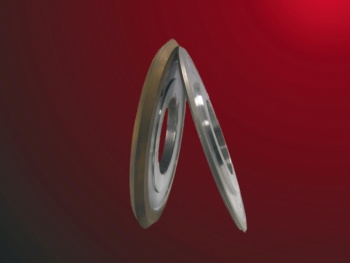

Type: 14EE1 Disc-type diamond angular symmetric grinding wheel)

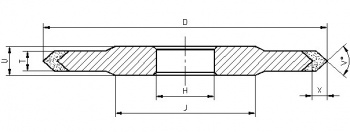

Standard dimensions in mm

D	T	X	V^o
60	3, 4	5	80^o - 90^o
100	3, 4	5	80^o - 90^o
150	3, 4	10	80^o - 90^o
200	3, 4	10	80^o - 90^o
250	3, 4	10	80^o - 90^o

H, J, U - accords the requirement

NOTE! We can make the wheels of other dimensions

Size of diamond grit: D39 - D251 (FEPA)

Bond: sintered metal M

Order example: type D x T x X x H x V^o diamond grit

14EE1 200 x 4 x 10 x 42 x V90^o D54
