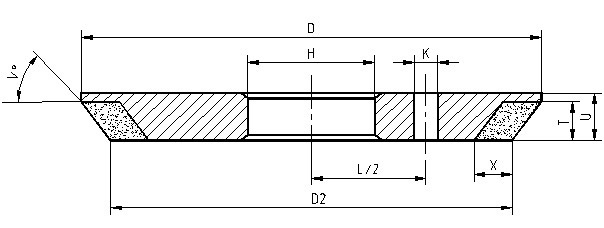

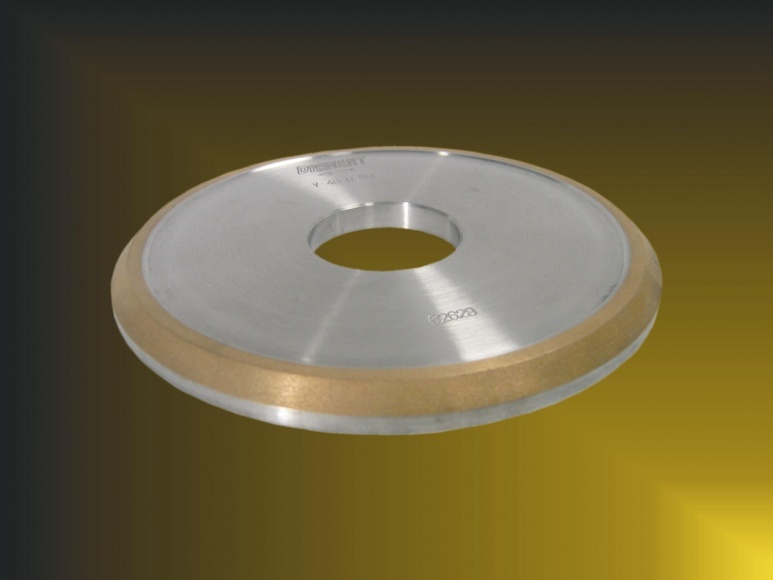

Type - 1V9   Disc-type diamond angular grinding wheel











Standard dimensions in mm

D

T

X

Vo

150

5 - 12

3 - 10

45o (30o, 60o)

175

5 - 12

3 - 10

45o (30o, 60o)

200

5 - 12

3 - 10

45o (30o, 60o)

H, K, L - accords the requirements

U min. = T + 2 mm

D2 - results in diameter geometry (D, T, Vo)

NOTE! We are able to make wheels of non-standard dimensions.

Diamond grit size: D39 - D251 (FEPA)

Bond: sintered metal M

Order Example: type    D x T x X x H x Vo     diamond grit

1V9    200 x 12 x 10 x 50 x V45o      D91
