Type: 1DD1V Diamond edging grinding wheel

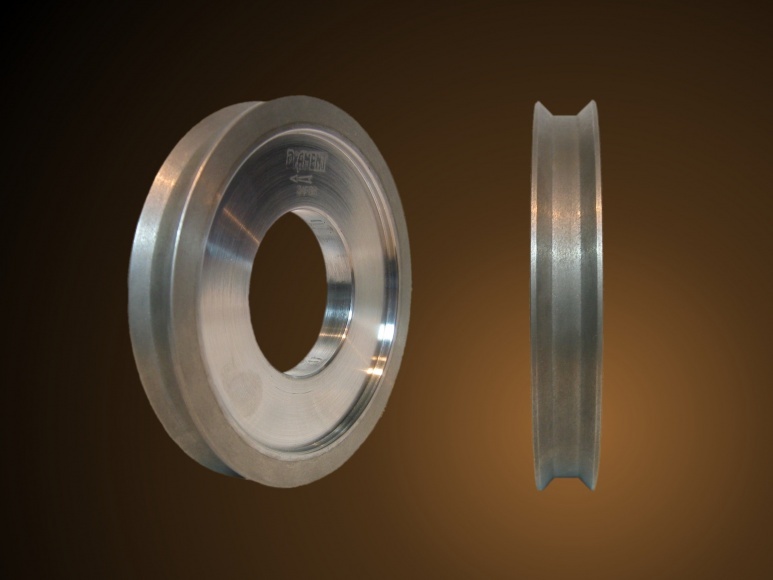

Diamond edging grinding wheel - 1DD1V

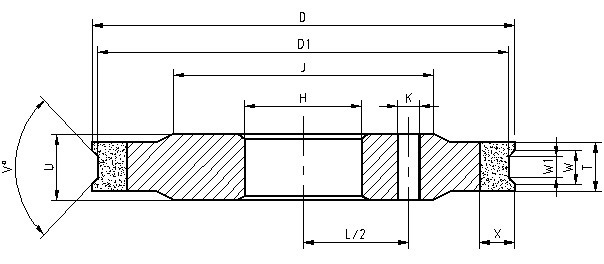

Standard dimensions in mm

D

T

X

Vo

60

4 - 22

5

90o (60o, 120o)

75

4 - 22

5

90o (60o, 120o)

100

4 - 22

5, 10

90o (60o, 120o)

150

4 - 22

5, 10

90o (60o, 120o)

175

4 - 22

10

90o (60o, 120o)

200

4 - 22

10

90o (60o, 120o)

W, W1, H, J, K, L - accords the requirements

For standard wheels (V90o)

D1 = D - 4 mm, W1 = W - 4 mm, W = T - 2 mm

NOTE! We are able to make wheels of non-standard dimensions



Diamond grit size: D39 - D251 (FEPA)

Bond: sintered metal M

Order Example: type D x D1 x T x Wx W1 x X  x  H  x V     diamond grit

1DD1V   175 x 171 x 10 x 8 x 4  x 10 x 50 x V90o D91
