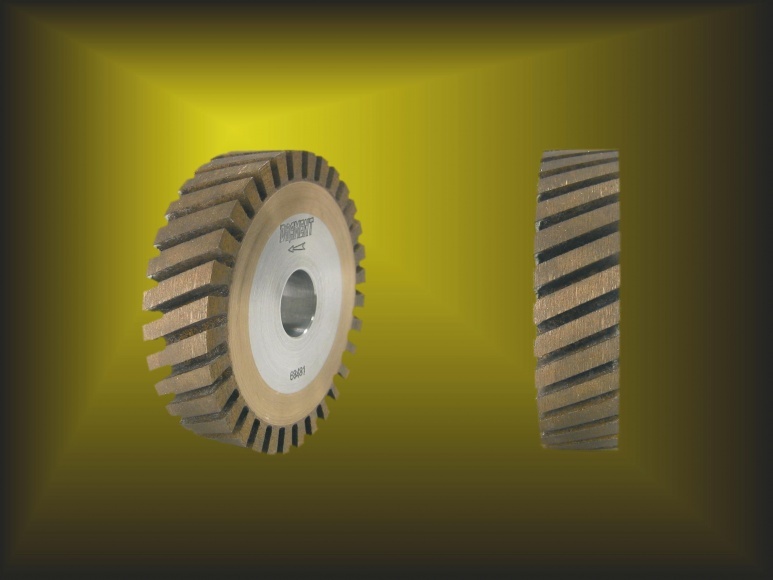

Typ - 1A1S/1  Disc-type diamond flat grinding wheel (with slots) - TURBO

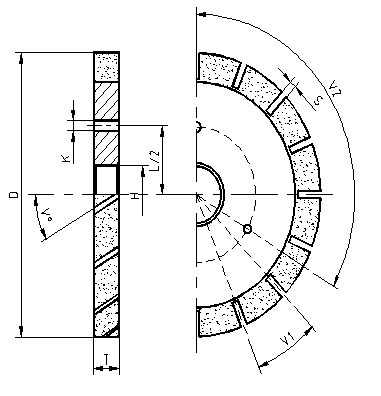

Standard dimensions in mm

D

T

X

20

8 - 20

5

25

8 - 20

5

35

8 - 20

5

40

8 - 20

5

50

8 - 20

5

60

8 - 20

5

75

8 - 20

5

100

8 - 20

5, 10

150

8 - 20

5, 10

175

8 - 20

10

200

8 - 20

10

H, K, L, S, Vo (J, E - as for 9A1) - accords the requirements

 NOTE! We are able to make wheels of non-standard dimensions.

Diamond grit size D39 - D251 (FEPA)

Bond: sintered metal M

Order Example:

type  D x T x X x H     n x S x Vo x V1o 3x V2o xfK/ fL      diamond grit

1A1S/1 150 x 20 x 10 x 42     12x2 x 25ox30o 3x120oxf9/f 100     D91
