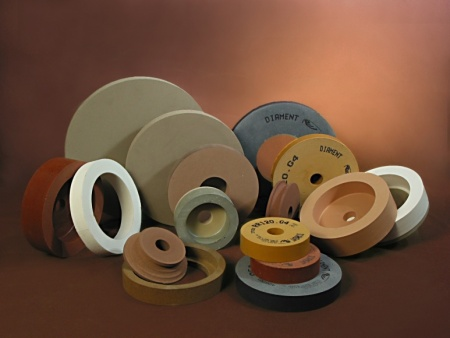

Depending to demands we are offering the polishing wheels made of various abbrasive materials. In order to make and individual choise of appropriate tools please contact with our workers.







Type Notes, application
BD universal wheel 1 or 2 step after B-STAR
B-STAR universal wheel (harder and more persistent than BD) or 1 step before BD
BB less firm than BD - softer
CERIUM super bitt



Type Notes, application
AO-Q4 polishing of arris after initial grinding
AO-Q6 polishing of flat surfaces of glass on grinding-polishing automatic machines
AO-Q7 polishing of flat surfaces of glass on  grinding-polishing automatic machines and automatic machine for bevel treatment
BK-WR1 polishing of flat surfaces of glass on  grinding-polishing automatic machines and automatic machine for bevel treatment, straight and shape edges, round - grinding machines, one step machines
BK-WR2 polishing of flat surfaces of glass on  grinding-polishing automatic machines and automatic machine for bevel treatment, straight and shape edges, round - grinding machines, one step machines
Ce polishing of flat surfaces of glass on  grinding-polishing automatic machines and automatic machine for bevel treatment, recommended to the machines of 3 polishinig stations upwards
E-ST straight and shape edges, round - grinding machines, one step machines
SC-HS polishing of arris after or without initial grinding with diamond wheel
SC-MS polishing of arris after or without initial grinding with diamond wheel
SC-WS polishing of arris after or without initial grinding with diamond wheel
SG-MB removing of coats from glass edges
SG-MB1 removing of coats from glass edges



Type Application
028N99 recommended only to polishing machines of one stand and to small bevels up to 2 mm - without diamond
10N80 to II step of polishing (mainly machines ZANETTI FP 10, 12)
10S to II step of polishing and to polishing of bevels after diamond
220N99 recommended for one stand polishing machines and beveling
9R to I step of polishing. Firm structure, smaller porosity in comparison with 9RS, but longer life time. Recommended for polishing, where the thickenss of polished glass is changing, because it has smaller capability to self-cleaning then 9RS
9RS to I step of polishing. Bigger porosity in comparison with 9R, thus better ability to self-cleaning, but shorter life time. Recommended for bigger lots of glass in the same thickness - automatic grinding machines
AB220 recommended only for one stand polishing machines and beveling
AB280 recommended only for one stand polishing machines and beveling
AB400 recommended only for one stand polishing machines and beveling
AB450 recommended only for one stand polishing machines and beveling
AF1 to I step of polishing. AF wheels are recommended for machines ZAFFERANI, BAVELLONI
AF2 to II step of polishing
AF3 recommended for end polishing
B2 recommended to manual and automatic polishing,equivalent of BD wheels, the most often 100mm to INTERMAC
MB1 recommended to making and polishing of bevels (grinding-polishing) only on one stand polishing machines The special good effects after polishing of the diamond wheel. Recommended for bevelling machines BAVELLONI MAX 50, 60
MB2 recommended for making and polishing of bevels (grinding-polishing) only on one stand polishing machines. The special good effects after polishing after diamond wheel. Recommended for the bevelling machines BAVELLONI MAX 50, 60. For making of bevels without previous grinding with diamond wheel.
N76 to II step of polishing after 9R wheels (to grinding machines ZANETTI FT 8)
RR good machining properties, good quality bitt
RR Blue Good machining properties, good quality bitt. More porous than RRG4, better self-cleaning-automatic polishing bigger lots of glass of the same thickness. Recommended as universal pot wheel to one stand manual polishing machines.
RRG4 Good machining properties, big durability and very good quality bitt. Recommended as equivalent of of wheels AO. Harder and more compact bond then in RR Blue wheels  - longer life time, smaller capability to self-cleaning. Recommended as universal peripheral wheels for one stand manual polishing machines.
SP46 to I step of polishing of covered glass
X081 to end polishing. Giving the worst bitt from all cerium wheels. The wheels of lot Xxxxx differ with the concentration of cerium oxide.
X110 to high quality end polishing
X3000 to high quality end polishing. The wheels X3000 i X5000 needs slightly bigger press and smaller water quantity then other cerium wheels, hence the bigger working temperature and some plasticity of their structure giving better bitt. They require individual, experimental selection of pressure and quantity of given water in order to optimalize the working parameters and quality of polished surface.
X5000 to high quality end polishing. The wheels X3000 i X5000 needs slightly bigger press and smaller water quantity then other cerium wheels, hence the bigger working temperature and some plasticity of their structure giving better bitt. They require individual, experimental selection of pressure and quantity of given water in order to optimalize the working parameters and quality of polished surface.
XO600 to high qualityend polishing
XON99 recommended for polishing of slots, e.g. decorative slots along mirror edges (last step)
ZX84 to end polishing
