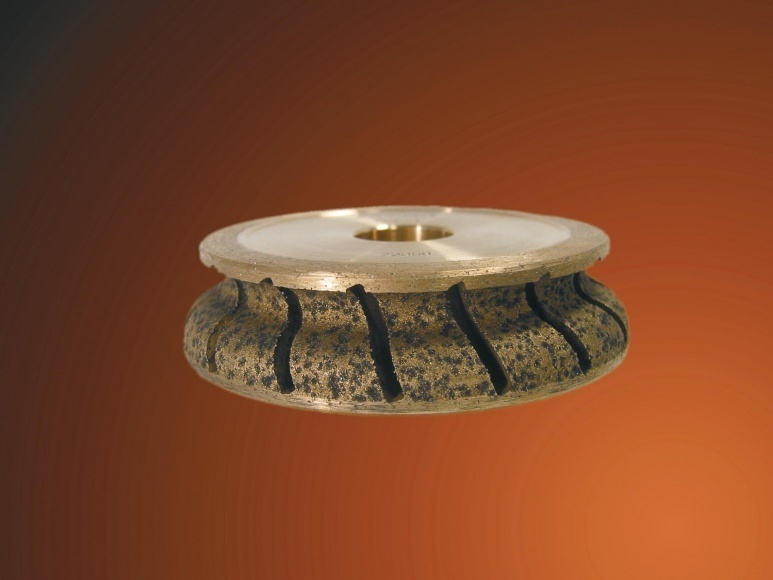

Type - 4G6Y/S

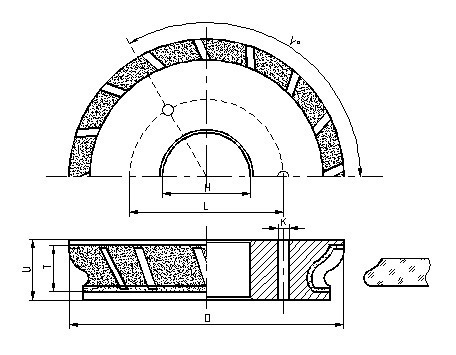

Standard dimensions in mm


D glass thickness
100 8,10, 12, 15, 19
120 8,10, 12, 15, 19

H, K, L - accords the requirements






It is a postion 1 (rough treatment) for grinding glass in set of 3 or 4 positions.


Bond: sintered metal M





Order example (wheel f 100 mm for glass 19 mm): Type D x glass x H position

4G6Y/S 100x19x22 pos.1



NOTE !!!


We can make the tools with inter-cooling.


Other dimensions available on request.
